821C Driver for 4' Light T10 LED

In Put Voltage: 100Vac～240Vac / 47Hz～63Hz
Out Put:
Voltage 66V 36V
Current 320mA 550mA
Operation 18 Parallel 20ea LED in Series 30 Parallel 10ea LED in Series
Efficiency: 90%

Operation Temperature:

 -25C ~ +60C
Humidity: 5% ~ 95%
Life: >50,000 hours
Circuition Protection: TVS Protection

CE STD:

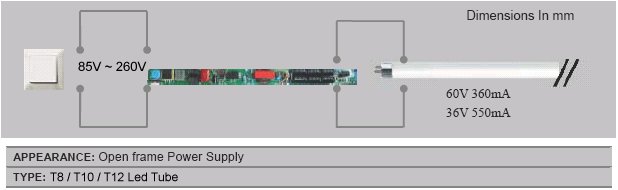

Connecting:

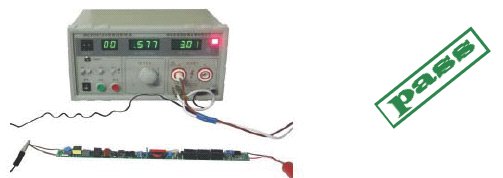

Insulation High Port: 3000V/30 Sec.

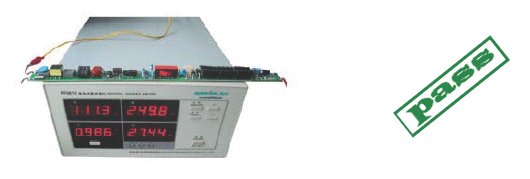

Power Efficiency:

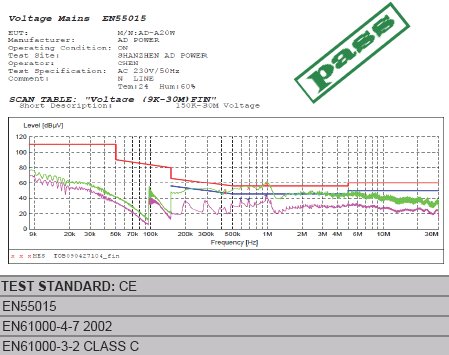

EMC Test
